Neural Quad Cortex® Mini

Description

Built for exceptional performance at its size and price, Quad Cortex mini makes it easy to dial in world-class sounds, explore a vast range of amps, effects, and Captures, and build rigs without creative limits wherever you play.

Whether you’re stepping into the Quad Cortex platform for the first time or already feel at home, Quad Cortex mini shares the same platform and workflow, making great sounds fast, intuitive, and deeply rewarding from the first note.

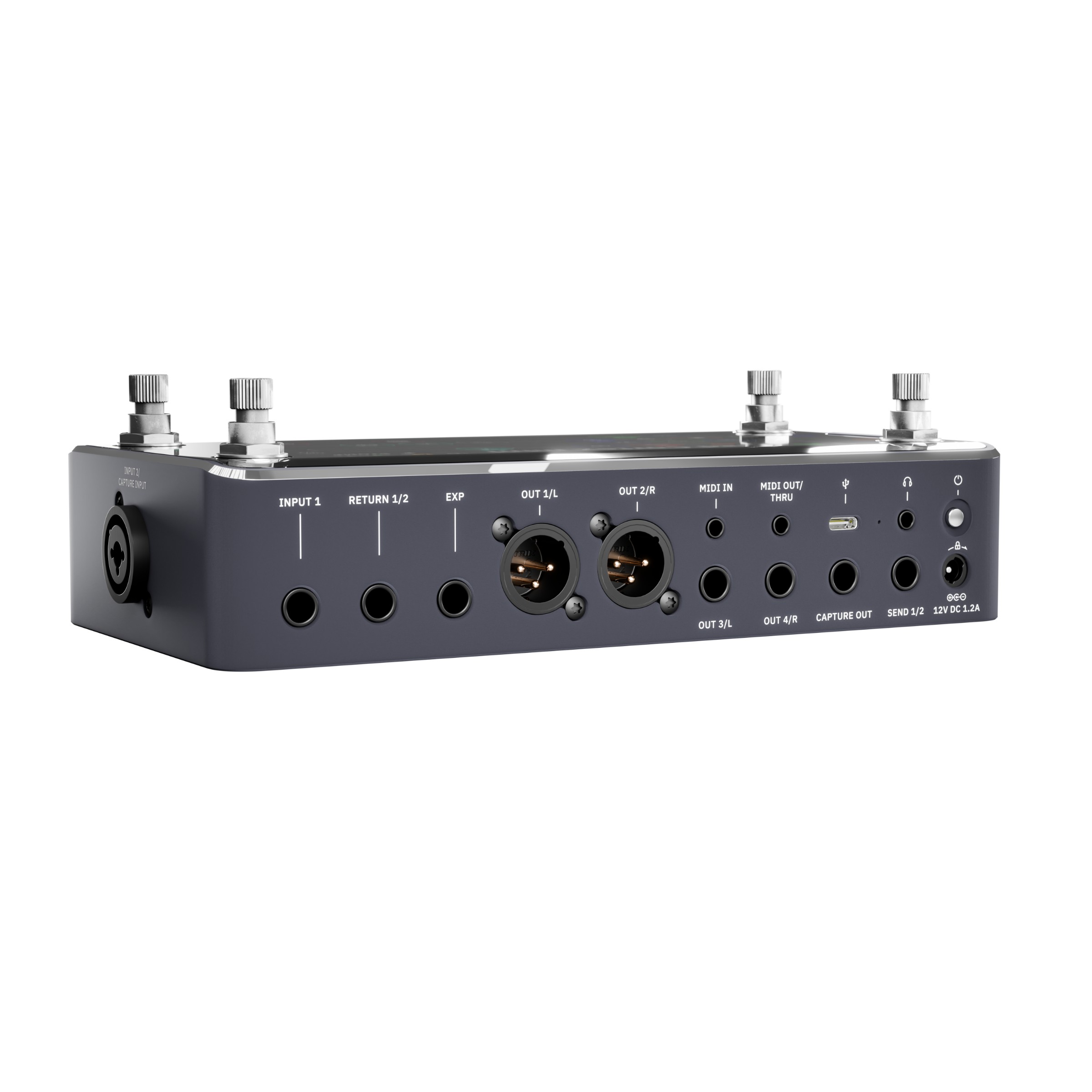

INPUT 2/CAPTURE INPUT
Combo XLR and 1/4″ TRS input with dedicated level control and phantom power. Plug your instrument or microphone here. This input is also used for creating Neural Captures.

INPUT 1
1/4″ TS input for plugging in your instrument.

DUAL EFFECTS LOOPS
SEND 1/2 and RETURN 1/2 each use a shared 1/4″ TRS. Use a standard TRS cable for Loop 1, or a TRS insert cable (TRS to dual TS) to access both FX Loops.

EXPRESSION INPUT
1/4″ TRS input for connecting an expression pedal to control parameters like volume, wah, pitch, or effects in real time. A second expression input is available via MIDI.

XLR OUTPUTS
Two mono, balanced XLR outputs.

MIDI IN & OUT/THRU
1/8″ TRS MIDI Type-A for receiving and sending MIDI messages to automate switching and supported parameter control, or to control other MIDI devices.

USB-C
Connect to your computer and use Quad Cortex mini as a multichannel (8 in / 8 out) USB audio interface for recording and re-amping.

HEADPHONES OUTPUT
1/8″ TRS headphones output for silent practice and monitoring.

POWER SWITCH
Mechanical power switch.

TS OUTPUTS
Two 1/4″ TS outputs for flexible routing.

CAPTURE OUTPUT
Dedicated output for creating Neural Captures.

POWER INPUT
12 V DC, 1.2 A, center-negative power input with locking 2.1 / 5.5 mm DC connector. Power supply included, with a non-locking adapter for compatibility with standard pedalboard power supplies. Power-on behavior can be set to automatic power-up when connected, or manual power-up using the power switch.
