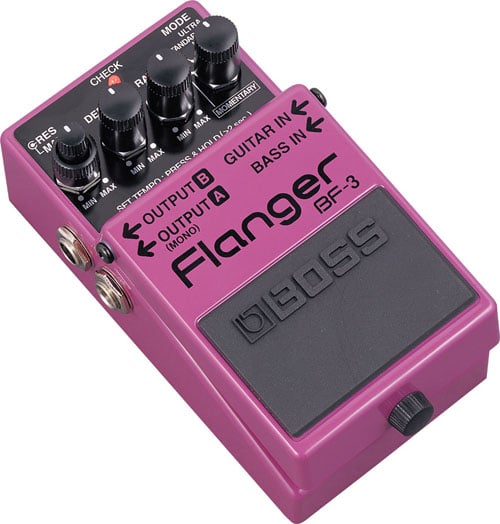

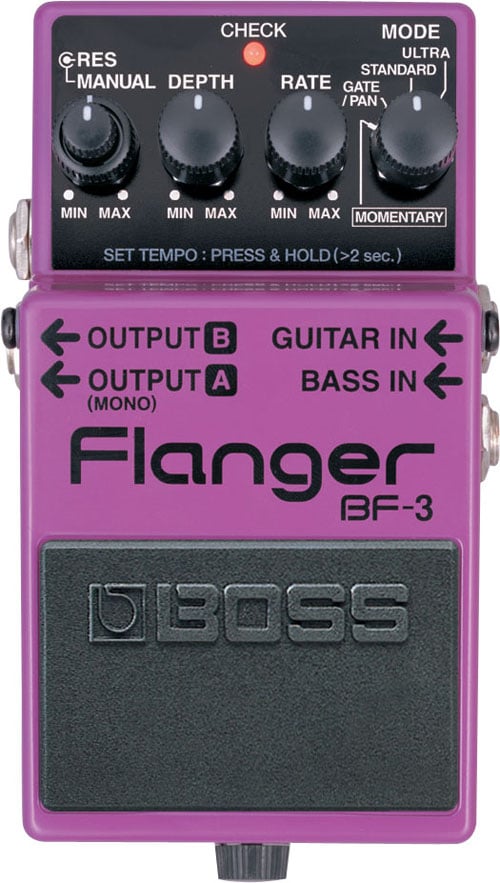

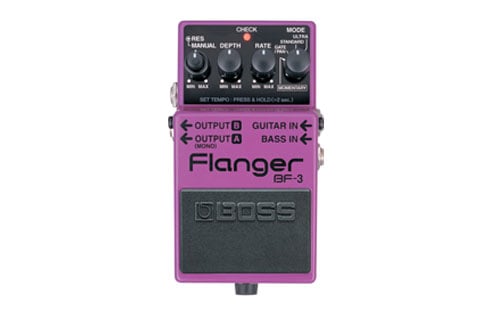

The Boss BF-3 flanger pedal provides guitarists and bassists with an updated take on the beloved BOSS flanger, delivering the fullest stereo flanging sounds yet. With two new modes (Ultra and Gate/Pan), it offers stereo flanging of remarkable depth, including effects akin to Slicer-type modulation and swirling sounds that envelop the listener. It’s an instant classic for any pedalboard.
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
MODE knob
RATE knob
DEPTH knob
RES (Resonance)/MANUAL knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
GUITAR IN jack: 1/4-inch phone type
BASS IN jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
60 mA
Expected battery life under continuous use
Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Registration Card
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
425 g
15 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
